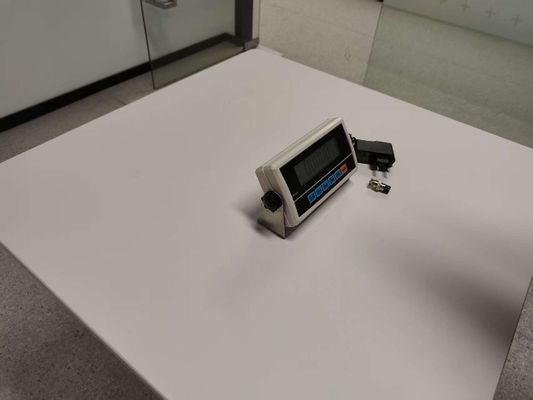

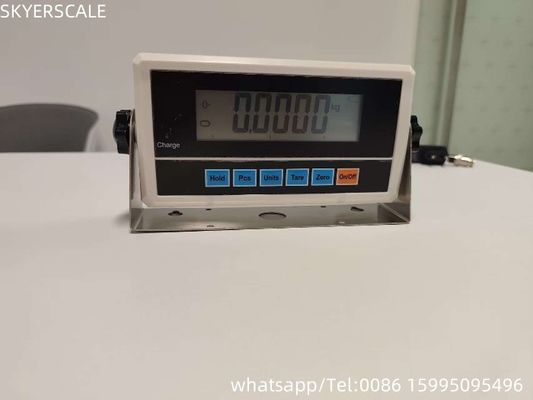

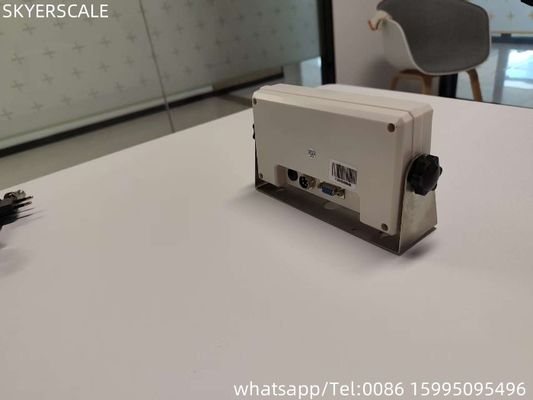

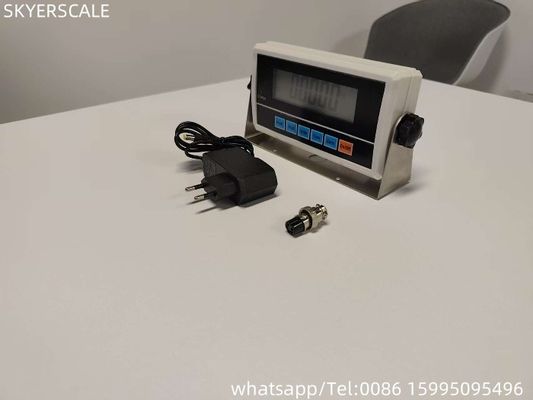

Floor Scale Platform Weight Indicator With LCD Display And Terminal Type

1
MOQ
बातचीत योग्य
कीमत
Floor Scale Platform Weight Indicator With LCD Display And Terminal Type
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
प्रकारः: फ़्लोर स्केल, बेंच स्केल के लिए टर्मिनल
डिस्प्ले प्रकार: एलसीडी
सामग्री: प्लास्टिक की पेटी
सटीकता: 300000
विद्युत आपूर्ति: 220V 50HZ या 110V 60HZ
नाम: डिजिटल लोड सेल संकेतक
प्रमुखता देना:

Floor Scale Platform Weight Indicator

,

LCD digital weight indicator

,

Floor Scale digital weight indicator

मूलभूत जानकारी
उत्पत्ति के प्लेस: चीनी
ब्रांड नाम: SKYERSCAL
मॉडल संख्या: IN520
भुगतान & नौवहन नियमों
पैकेजिंग विवरण: कार्टून
प्रसव के समय: 15-20 दिन
आपूर्ति की क्षमता: 1000 पीसी / एम
उत्पाद विवरण

Platform Weight Indicator cattle scale dog scale Weighing Indicators



Standard Function:

gh precision A/D conversion with readability 1/30000

AC/DC power supply, with inside rechargeable battery 6V/1.2AH

Able to setup zero-tracking range

Able to setup print function

Standard RS232 communication interface with selectable baud rate and communication method

Optional bluetooth function

Model

IND-EL

Display

6 digits LCD

Capacity

1-800000kg

Verified counts

1/30000-1/60000

A/D conversion method

∑—△

A/D conversion speed

8 times/sec

Max. A/D conversion bits

24

Input signal range

-20mV~20mV

Input sensitivity

≥0.02 μ V/e

Load cell excitation

DC 5V: 1 ≤150mA

Max. connection number of load cell

8 at 350 ohm

Load cell connection mode

4 wire, auto compensation for long distance ≤ 10 meters

Temperature

0°C to +40°C / +32°F to +104°F

Power supply

AC 12V/500mA ; DC inside rechargeable 6V/1.2AH battery//Option:Lithium battery

Calibration

Manual calibration

Calibration weight

0-100% Cap.

Appearance

ABS

Scale size(w x d x h)

210x115x55mm

Net weight/Package

0.75kg/16pcs





Weighing display

Floor Scale Platform Weight Indicator With LCD Display And Terminal Type 0Floor Scale Platform Weight Indicator With LCD Display And Terminal Type 1

Competitive Advantage:
1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year
