Specifications:
Configuration table:
| Model |
Size(A×B×C) (mm) |
Capacity (Double Pads for One Axel) |
Description(Each Pad) |
| AS001 | 350×350×35 | 1000/2000/3000Kg |
4pcs LC348 LoadCell,10m Cable Capacity:500/1000/1500Kg |
| 400×500×56.5 | 3000/5000/6000/10000Kg |
4pcs LC348 LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg |
|
| 450×700×56.5 | 10000/20000/30000Kg |
4pcs LC348 LoadCell,10m Cable Capacity:5000/10000/15000Kg |
|
| 500×900×56.5 | 20000/30000/40000Kg |
4pcs LC348 LoadCell,10m Cable Capacity:10000/15000/200000Kg |
Outline Dimension (mm):
Product Parameters:
| Rated load:1/2/3/5/6/10/20/30/40T | Compensated temp.range(℃): -10~+50 |
| Dynamic error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 |
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation voltage(VDC): 9~15 | Net weight(kg): 45 |
| Recommended voltage(V): 10 | Defend grade: IP66 |
Description:

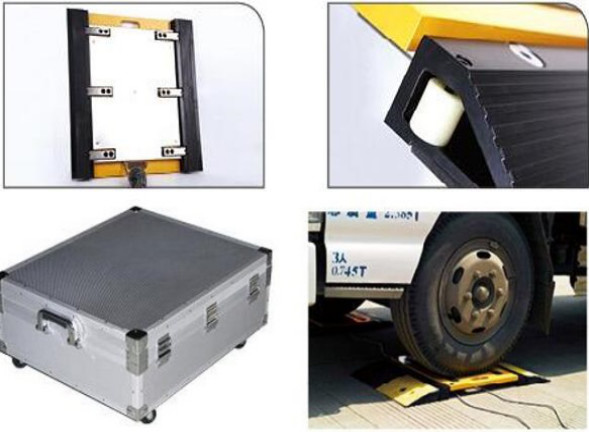

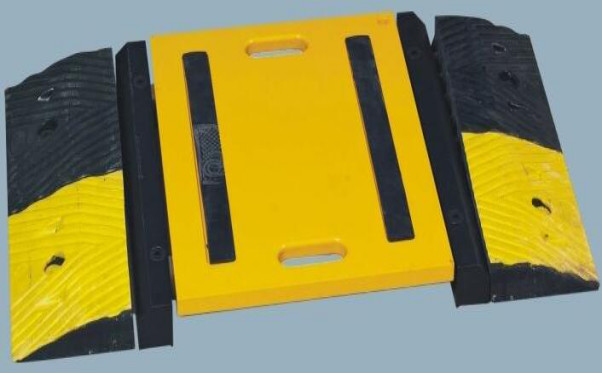

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.
Applications:
1. Load control and weighing for the vehicles.
2. Measuring the weight and barycenter of aeroplane.
3. Measuring weight for special purpose.
